The WireXpert is the first cable certifier capable of certifying the highest performance cabling systems in enterprise networks and data centers. With testing certification up to FA and CAT8 copper cabling class, as well as MPO, SM and MM fiber optic cabling, WireXpert is ready for 40G and more.

The WireXpert 4500 was the first to be approved for Bel Stewart CAT 8.2 and ISO Class II. So the WireXpert 4500 is now fully prepared for new wiring standards up to 40 GB/s.

In the midst of 21st century and with the growing demand for bandwidth, this certification plays a crucial role for guaranteed data rates. Certification requires the characterization of each fiber link to the desired standards in measuring insertion loss (attenuation*) and fiber bond length. *The insertion losses telecommunications are losses of signal power due to the insertion of a device into a transmission line Or fiber optics

WireXpert minimizes TIMES installation through ISO/IEC and TIA standards.

Get to know the 2 families, WIREXPERT 4500 AND WIREXPERT SERIE 500:

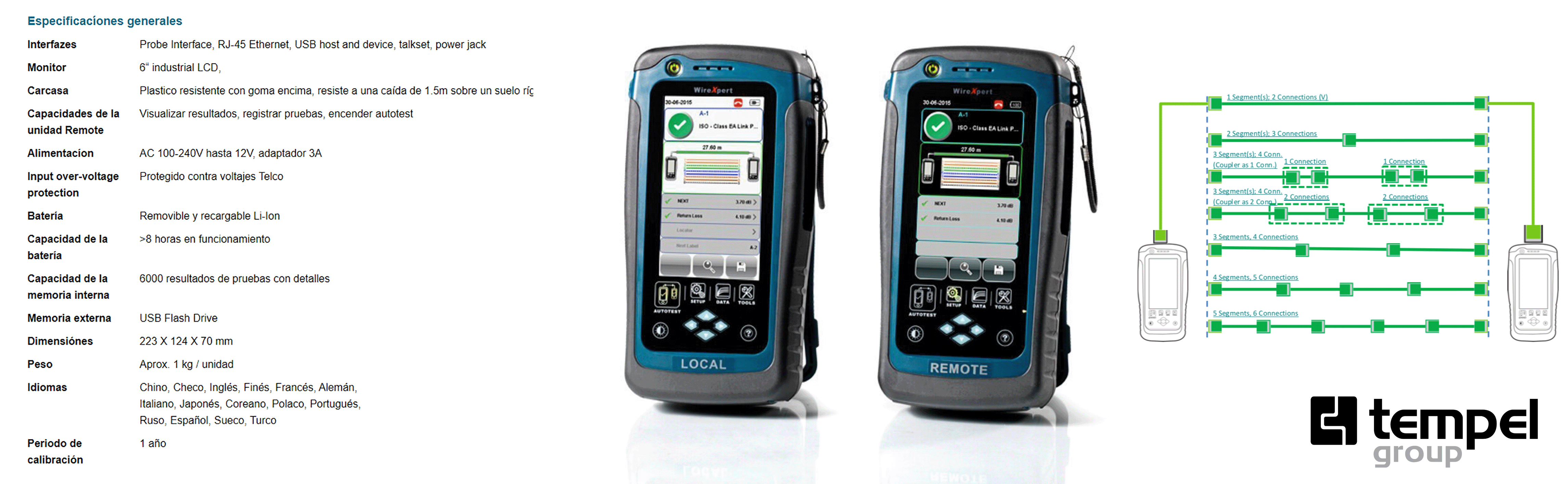

 WireXpert 4500:

One of the teams that takes the least time to complete a certification Its speed and the fact that it has two screens makes it the fastest certifier to do field work. It offers intuitive navigation through the device's screens and generates professional reports through its ReportXpert PC software.



It employs a novel measurement architecture that achieves wide bandwidth with superior measurement accuracy. Its unique RF measuring engine exceeds Tier IV and Level V requirements across the entire frequency range.



Main features:

  • Certifier up to 2500 MHz
  • The most advanced cable certification for all standards: Class D/E/EA/F/FA, CAT 5/5e/6/6A/7/7A and CAT 8 and Class I and II
  • Faster automatic test: less than 9 seconds.
  • Independent ETL verification to confirm measurement accuracy.
  • Meets and exceeds ISO Level VI, V, IV, IIIe requirements and TIA level 2G and IIIe accuracy requirements.
  • Endorsed by more than 30 cable manufacturers worldwide.
  • It can be expanded in the field with many options, such as hose testing, industrial Ethernet, FA class, coaxial, fiber optics
  • Allows extended certifications for 850/1300 nm (multimode) and 1310/1550 nm single mode optical fiber
  • Extended reports and wiring documentation
  • Equipped with two screens, Local and Remote to reduce the walks between the two teams (patented by Softing)

The only certifier that meets the requirements of data centers, office cabling, and industrial Ethernet

If you don't need this cap, you can always opt for the family of WireXpert 500. WireXpert 500 is the younger brother of the Wirexpert 4500. It has exactly the same functionalities as Wirexpert 4500 but with some limitations.

WireXpert 500 It's a Certifier affordable and upgradeable cables that can grow as your cable certification needs do. Invest today only in the options you really need and update the device later if necessary. Various options are available, from copper cable certification to CAT 6A/EA Class cables, a single-mode, multimode optimal fiber level 1 certifier, and a combined fiber and copper certifier. The various options can be extended by a license. For example, if you today install copper and need additional fiber-wired installations in the future, you could upgrade your WireXpert 500 copper certifier to a WireXpert 500 PLUS copper and fiber certifier. However, it is designed to adapt, if you need a certification up to CAT 8 in the future, all models can be upgraded to that frequency range.

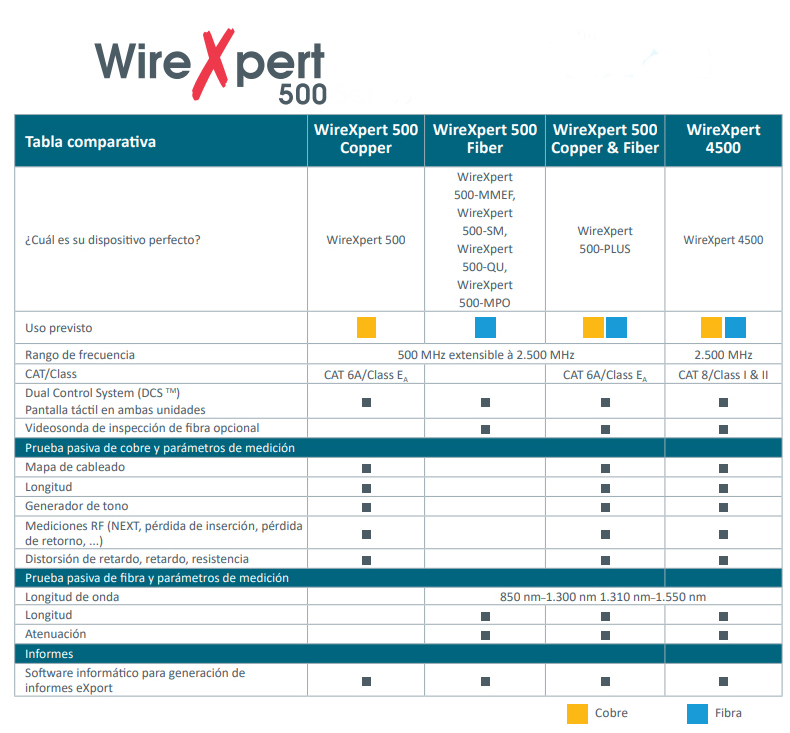

This is the WireXpert 500 family of certifiers:

Finally, here's how to set them up with our Product Manager #JacintPeix:
